Trend Shift
Dual-engine trend direction. HTF Breakout for structural confirmation, Edge Shift for early pivot detection. When both engines agree, the trade takes itself.
Two engines. One verdict. No ambiguity.
FLB Trend Shift is the directional arbiter of the FLB ecosystem. It runs two independent trend engines — HTF Breakout for structural direction and Edge Shift for early pivot detection — plus a baseline-driven confirmation layer that recolors candles in real time.
You can run either engine alone, or both at the same time. When both agree, you have the cleanest directional read available anywhere — an early entry from Edge Shift, a structural confirmation from HTF Breakout, and a visual confirmation from candle coloring. That's the setup this guide is built around.
Edge Shift arrow. Early warning — the auction just pivoted.
HTF Breakout arrow. Structural confirmation — the pivot is real.
Candle color flip. Visual confirmation — price broke the band in the trend direction.
Independent by design — better together
Each can be toggled on or off in the Modules panel. Most members run both simultaneously, but there are situations where one alone is the right tool.
Structural — blue ▲ / yellow ▼
Watches a higher timeframe (default 5m) for breakouts above the prior HTF bar's high or breakdowns below its low. Trend flips only when the current chart's close confirms the break.
A glowing channel line traces HTF low (uptrend, green) or HTF high (downtrend). Conservative, high-conviction. Almost never whipsaws.
Early pivots — lime ▲ / red ▼
Tracks the running extreme of the current trend and flips when price reverses a user-defined Sensitivity threshold from that extreme. Default Sensitivity 0.3 — meaning a 0.3% pullback from the trend extreme triggers a flip.
A teal dotted line below price shows where the next upside flip would fire. Orange dotted line above shows where the next downside flip would fire.
The two engines complement each other. Edge Shift is fast and sometimes wrong. HTF Breakout is slow and almost always right. Running both gives you the speed of Edge plus the reliability of HTF.

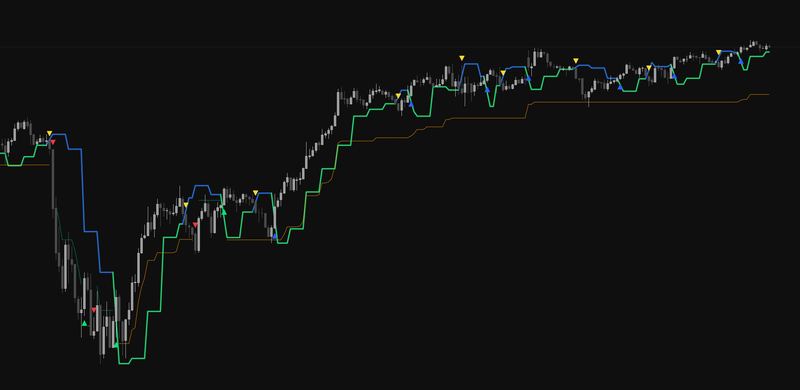

Every arrow, line, and color
With both engines enabled, Trend Shift can paint up to eight distinct signal types on your chart.
Blue ▲ below bar
Structural trend just flipped up. Confirmed on chart-bar close.
Yellow ▼ above bar
Structural trend just flipped down. Confirmed on chart-bar close.
Glowing channel line
Active HTF boundary with neon glow. Green in uptrends (traces HTF low), blue in downtrends (traces HTF high). Primary trail-stop reference.
Lime ▲ below bar
Early bullish pivot. Price reversed off the trend low by your Sensitivity threshold.
Red ▼ above bar
Early bearish pivot. Price reversed off the trend high by your Sensitivity threshold.
Teal & orange dotted lines
Trigger levels. Teal below price = next upside flip. Orange above price = next downside flip.
Green candles
HTF trend up AND price broke the upper confirmation band. Highest-conviction bullish state.
White / neutral candles
Price crossed back through the baseline. Trend is weakening — consider trailing stops or partial exit.
The flagship setup
When Edge Shift fires first, then HTF Breakout confirms within a few bars, then candles turn the trend color — you have Dual Agreement. Three independent engines, one unified read.
Lime ▲ fires
Edge Shift detected an early bullish pivot. This is your heads-up, not your entry. Start watching.
Blue ▲ fires within a few bars
HTF Breakout confirms — structural trend has flipped up. The pivot is real.
Candles turn green
Price broke the upper confirmation band with HTF trend up. Third confirmation. Dual Agreement plus visual.
Check the FLB stack
Trade Shield clear. FLB zones with room above. Surge green. Key Levels aligned. No veto anywhere.
Enter long at next bar open
Stop below the Edge Shift pivot low or HTF channel — whichever is tighter. Size based on R, not emotion.
Trail the HTF channel up
The channel steps up as HTF lows rise. Move your stop to just below each new step. Exit when price breaks channel OR candles turn white OR opposite signal fires.
When Dual Agreement fails. If HTF hasn't confirmed within roughly 10 bars after Edge Shift, the pivot was likely a failed early signal. Don't force the trade. Three invalidation patterns: no HTF follow-through, conflicting HTF state, candles stay white.
When to run one engine alone
Dual Agreement is the flagship. But there are sessions where running a single engine is the right call.
HTF-Only Mode
Disable Edge Shift. Trade only blue ▲ / yellow ▼ arrows and candle coloring. Strips the noise of early pivots.
Best for: clean trending days, higher TFs (5m, 15m trading chart), traders who prefer fewer signals with higher conviction.
Edge-Only Mode
Disable HTF Breakout. Trade only lime ▲ / red ▼ and trigger lines. No candle coloring, no HTF channel. Fast and pure.
Best for: news-driven sessions, CPI/FOMC days, very short-term scalps where 3–10 bar HTF confirmation is too long.
By session regime
Clean trending day: Dual Agreement.
Slow / grinding: HTF-Only (Edge will fire constantly on noise).
News / volatility: Edge-Only (HTF too slow).
Range / chop: Stand aside.
Trail the HTF channel
The glowing stepped HTF channel is the built-in trail stop. In an uptrend, the channel glows green and traces the HTF low — stepping up every time a new HTF bar makes a higher low. Mirror for downtrends.
HTF channel break (primary)
Price closes back through the HTF channel against your position. Structural trend weakening. Exit immediately, even if profit is thin.
Candles turn white
Price crossed back through the baseline. Early warning — momentum dying. Consider trailing tighter or taking partial profit.
Opposite-direction arrow
Blue ▲ or yellow ▼ against your position. Hardest signal — structural trend has officially flipped. Exit on next bar open regardless of P&L.
Target reached
Key Level, FLB zone boundary, or Prev Day extreme in your direction. Take full exit or scale out and trail the rest.
The trail is the trade. Good entries don't make money — good exits do. Every time the channel steps, move your stop to just beyond the new step. Don't override with gut feel — the channel has more information than you do in the moment.
By trading style
Trend Shift ships with defaults tuned for NQ/MNQ scalping on 15s–2m charts.
Module Toggles
| HTF Breakout On | Structural trend engine. |
| Edge Shift Off | Enable for Dual Agreement or solo pivot detection. |
| Enable Candle Coloring On | Critical for visual confirmation of the baseline breakout. |
Engine Tuning
| HTF Timeframe 15m | Lower to 5m for faster structural reads on 15s charts. Raise to 1H for swing work. |
| Sensitivity 0.3 | Edge Shift threshold. Lower for more signals, higher for fewer. % pullback from trend extreme. |
| Min Bars Between Signals 3 | Prevents rapid back-to-back Edge Shift flips. |
| Allow Intrabar Signals Off | Keep OFF for live trading. No repainting. |
Style Presets
| 15s scalp (default) HTF 5m / Sens 0.1 / Min 3 | Tight sensitivity for fast charts. |
| 1m scalp HTF 15m / Sens 0.3 / Min 3 | Standard intraday. |
| 5m intraday HTF 1H / Sens 0.5 / Min 5 | Session-hold timeframe. |
| 15m+ swing HTF 4H / Sens 0.75 / Min 5 | Swing / position trading. |
Four alert conditions
Configure in TradingView's alert panel or NT8's alert system. Wire what you trade.
HTF Breakout Engine
Edge Shift Engine
If you trade Dual Agreement, wire all four. Edge Shift gives the heads-up, HTF Breakout gives structural confirmation. When the second alert fires shortly after the first in the same direction, you have your setup.
How traders misuse Trend Shift
Most mistakes come from treating one engine as a complete system.
Trading every Edge Shift arrow
Edge Shift is early by design — which means some signals are too early. Taking every lime ▲ or red ▼ without HTF confirmation is trading a high-false-positive signal in isolation. Pair it.
Trading against the HTF channel
The glowing channel represents structural direction. An Edge Shift signal pointing opposite the channel's position is a warning, not a trade. Respect the channel.
Ignoring white / neutral candles
Candles flipping back to white is the earliest reversal warning. Traders who wait for the full HTF flip often give back 40%+ of gains. Respond with tighter stops or partial exits.
Fixed stops instead of trailing the channel
20-tick stops below entry and leaving them defeats the stepped HTF channel. The channel tells you where structure is, bar by bar. Use it. Fixed stops get hit on noise; channel stops get hit only on real structural breaks.
Running the wrong mode for the regime
Dual Agreement on a chop day produces constant failed-confirmation noise. HTF-only on a news day lags everything. Match mode to session — re-read Solo Playbooks if unsure.
Trading on the Edge arrow before HTF confirms
Dual Agreement requires all three confirmations. Taking the trade on lime ▲ before blue ▲ and green candles is skipping the confirmation that makes the setup reliable. Use the 3–10 bar waiting window.
Forgetting Trade Shield
A perfect Dual Agreement setup is still no-trade if Trade Shield is flagging tilt or loss-limit proximity. Behavioral rules override technical setups every time.
Enabling Allow Intrabar Signals
Repaints. Live trading and historical backtests will diverge. Always keep this OFF in production.
Frequently asked
Trend Shift classifies changes in its directional regime. Pullback marks a product-defined reclaim inside an established baseline direction. They describe different conditions; neither tells a user when to enter or guarantees continuation.
HTF Breakout and Edge Shift can be displayed separately or together as Dual Agreement. Each mode uses different confirmation rules and can produce different timing. Select a mode through a written, tested process rather than changing it in response to a single session.
HTF Breakout waits for a chart-bar close beyond the prior higher-timeframe bar's high or low, so confirmation necessarily occurs after that condition is observed. A shorter HTF setting can respond sooner but also changes marker frequency and context; it does not eliminate false signals.
Sensitivity changes how readily Edge Shift qualifies a move. Lower values can produce more markers from smaller changes, while higher values are more selective under the product's rules. Default 0.3 is a documented NQ/MNQ starting point, not a proven optimum; compare settings on the same data.
Under the current settings, price did not close through the confirmation band in the displayed trend direction. That means the third Dual Agreement condition is absent. It describes the indicator state and is not a prediction of what price must do next.
At each qualifying higher-timeframe bar close, the channel updates to the bar's low in the displayed up state or high in the displayed down state. The line is a visual reference, not a broker-held trailing-stop order, and it does not guarantee an executable exit price.
Trend Shift can be applied to supported stock charts with suitable bar history. Behavior varies by symbol, session, liquidity, timeframe, and settings. Defaults documented for NQ/MNQ are starting points only; validate a stock configuration separately before live use.
Edge Shift sees it. HTF confirms it. Candles verify it.
Dual-engine trend direction. HTF Breakout for structural confirmation, Edge Shift for early pivots — when both agree, the trade takes itself.
